ACTYON
ACTYON
* Images of this vehicle are for reference only and may differ from the actual product.
* Each color is arranged from left to right in order of customer preference.

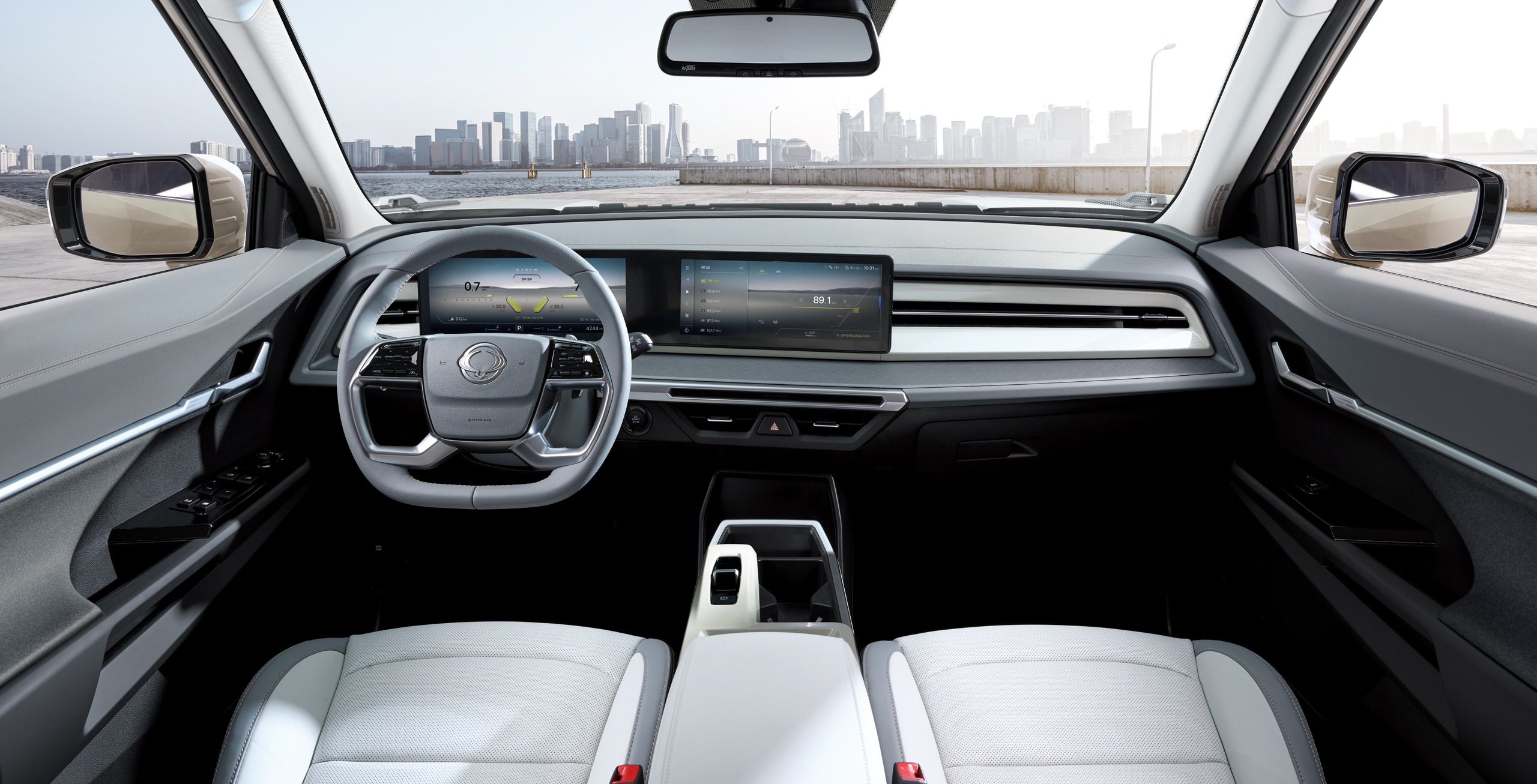

CHARCOAL BLACK
* The photos and descriptions are for reference only and may differ from the actual product.

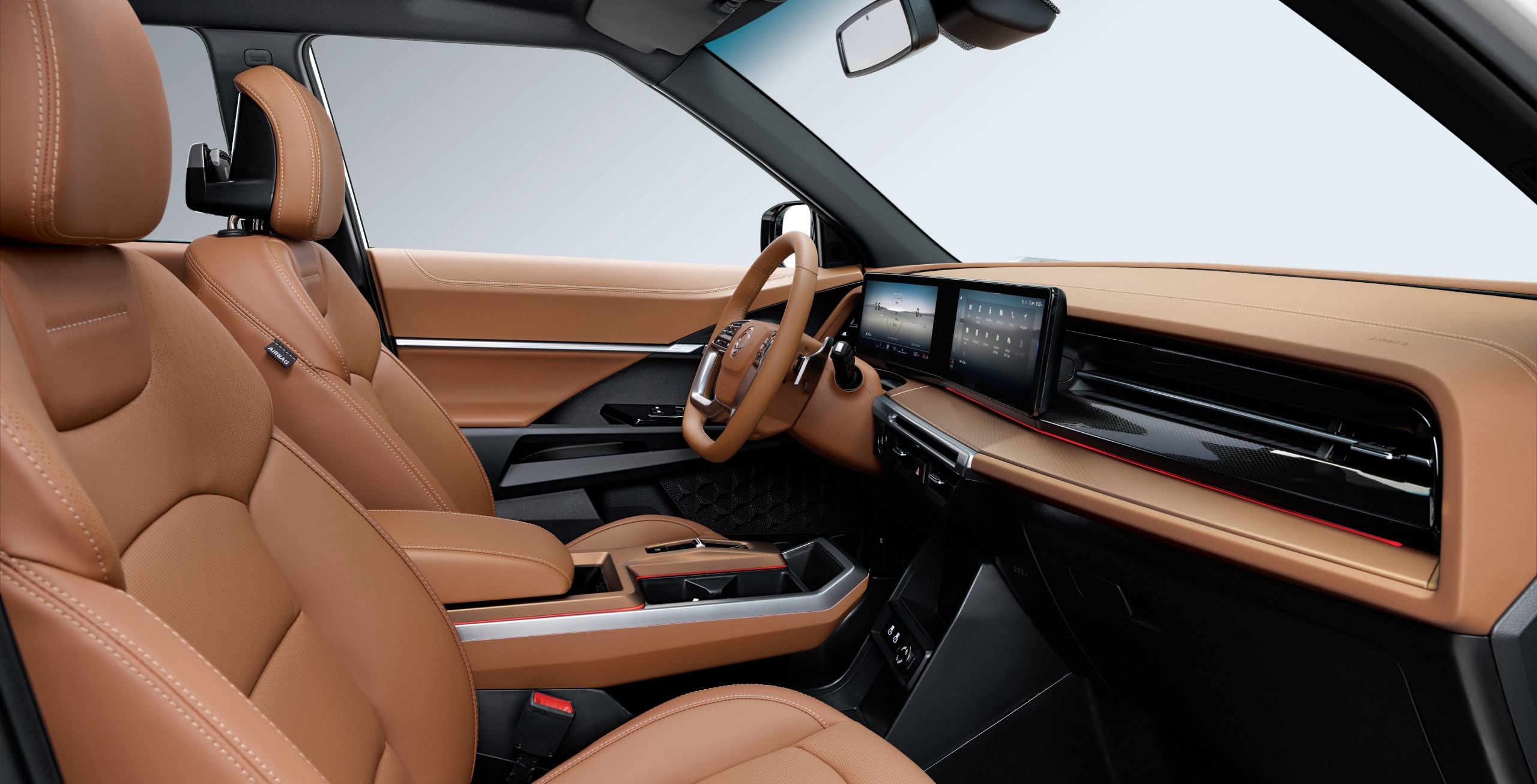

RAWHIDE BROWN
* The photos and descriptions are for reference only and may differ from the actual product.

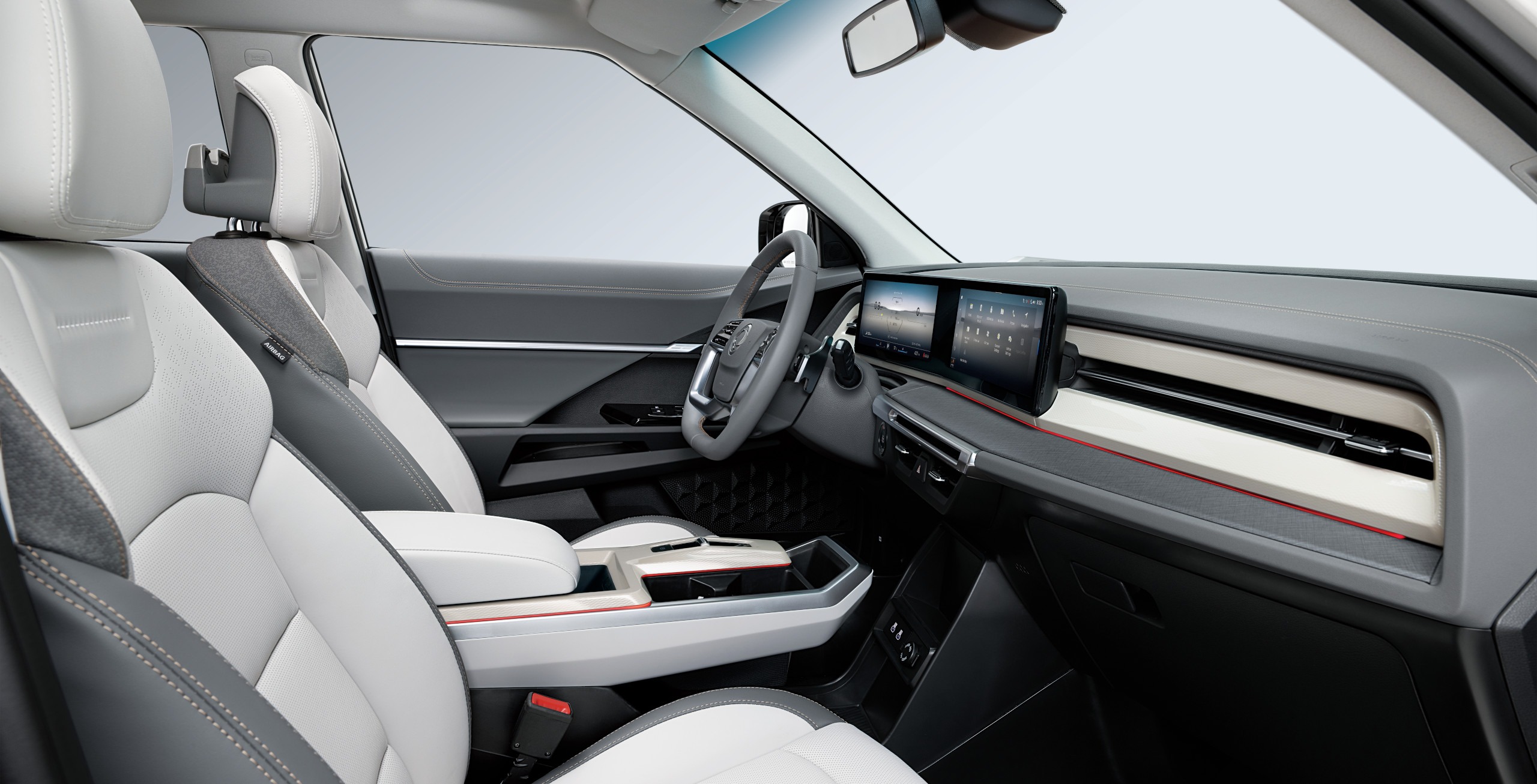

TEAL GREY & GREIGE WHITE 2-TONE
* The photos and descriptions are for reference only and may differ from the actual product.
SAFE AND SOUND ON EVERY ROAD
SAFETY
ACC & SSA helps maintain a safe distance from the vehicle ahead based on the set speed (when accelerating, decelerating, stopping, and starting) and assists driving at a safe speed.
AEB warns the driver of a potential frontal collision while driving and automatically activates the brakes to prevent an accident.
When towing a trailer or caravan, TSA stabilizes steering control in response to side-to-side swaying caused by harsh road conditions.
The tailgate includes an internal button that allows you to open and close the tailgate from inside the vehicle, making it convenient for camping in the car.

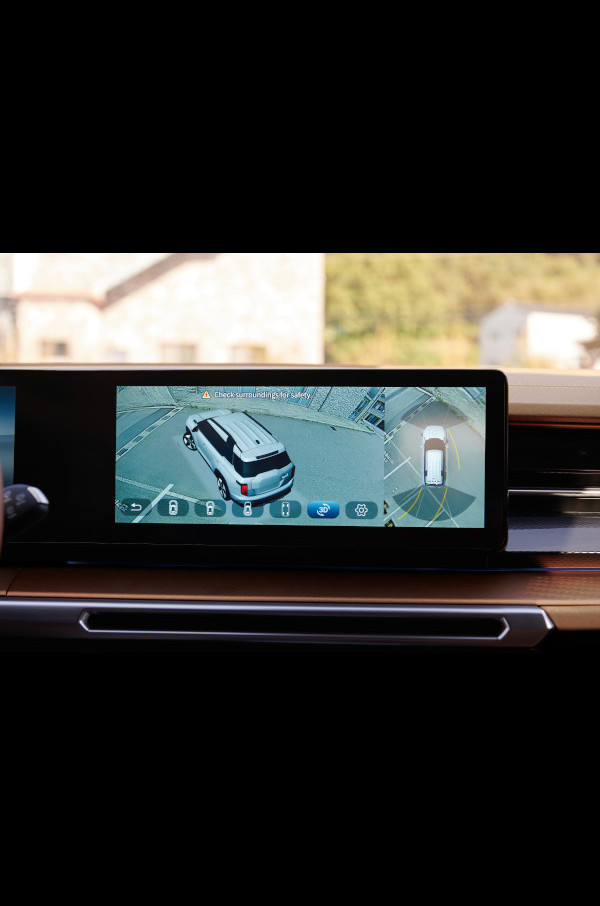

Four cameras on the exterior monitor parking and driving, helpfully providing a clear view of the rear and ground areas.
FOR YOUR SMARTER, EASIER AND COMFORTABLE MOVE
CONVENIENCE
The tailgate includes an internal button that allows you to open and close the tailgate from inside the vehicle, making it convenient for camping in the car.
Four cameras on the exterior monitor parking and driving, helpfully providing a clear view of the rear and ground areas.

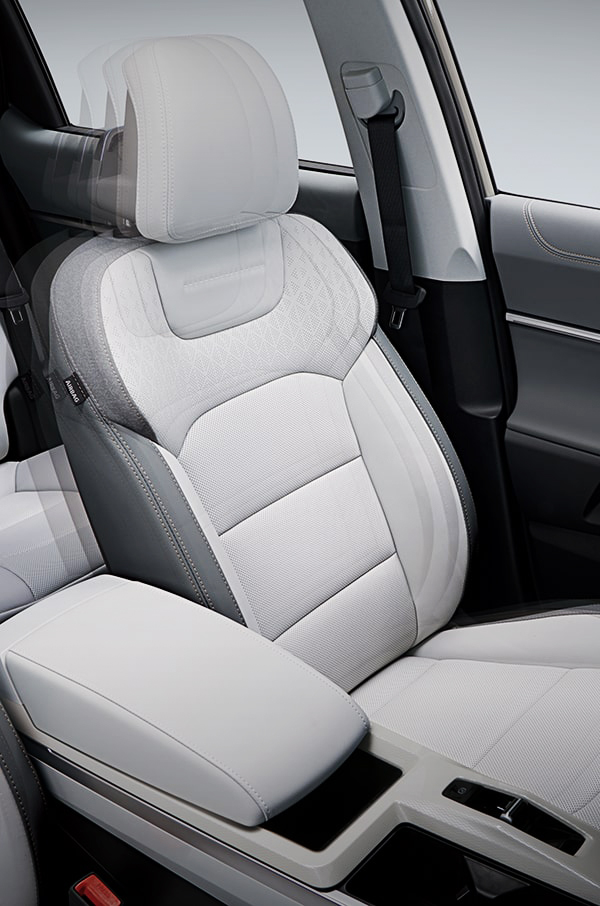

Featuring an 8-way powered seat with 2-way lumbar support (for adjusting the lower backrest), providing a comfortable driving environment tailored to anyone's needs.

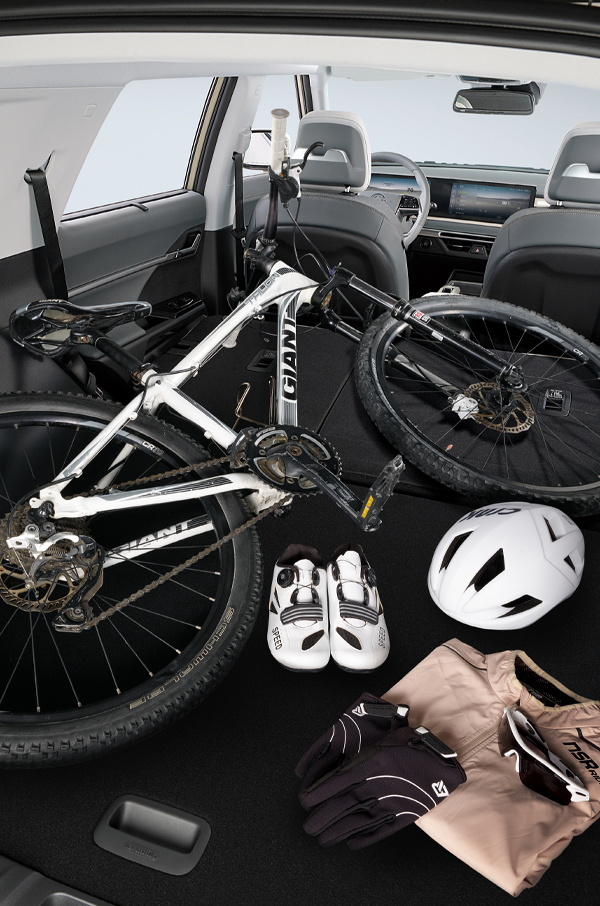

Offering a class-leading cargo space of 1,662 liters, suitable for various outdoor activities.

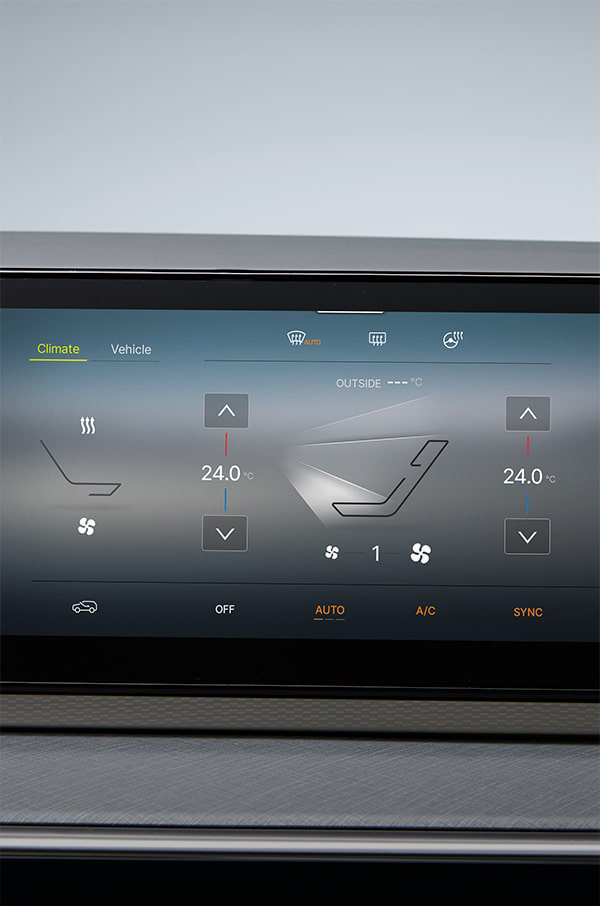

Including a micro air conditioning filter, auto defogging, and after-blow functions for a more comfortable ride.
POWERFUL, DYNAMIC MOVE
PERFORMANCE

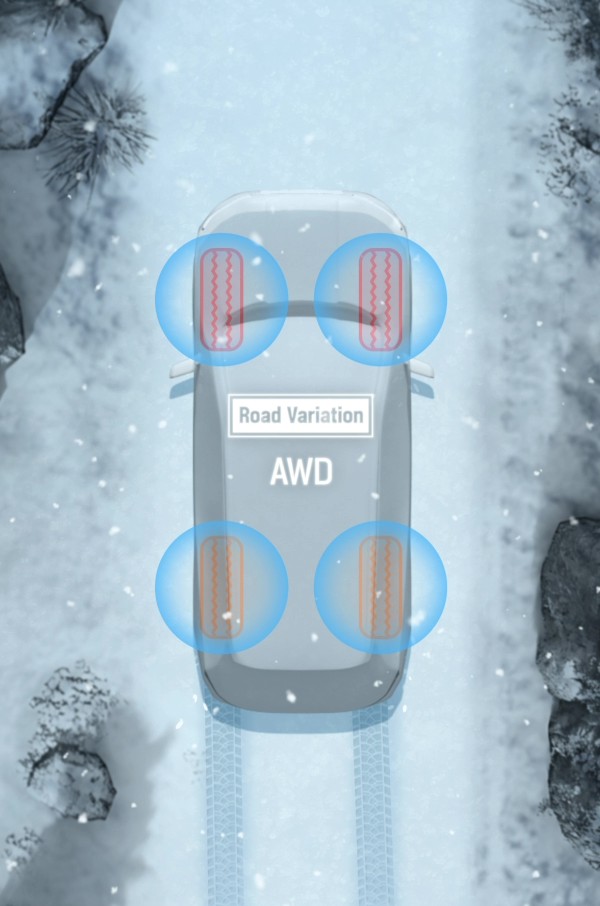

Supporting efficient and safe driving by monitoring the vehicle's status in real-time, optimally controlling and distributing driving force automatically.
With a maximum output of 163 PS at 5,000 to 5,500 rpm and a maximum torque of 280 Nm at 1,500 to 4,000 rpm, the Actyon offers a lively driving experience even at low-speed ranges.
While the AISIN 6-speed transmission offers proven durability and reliable shifting performance, the 'Shift by Wire' toggle switch allows you to easily control it.

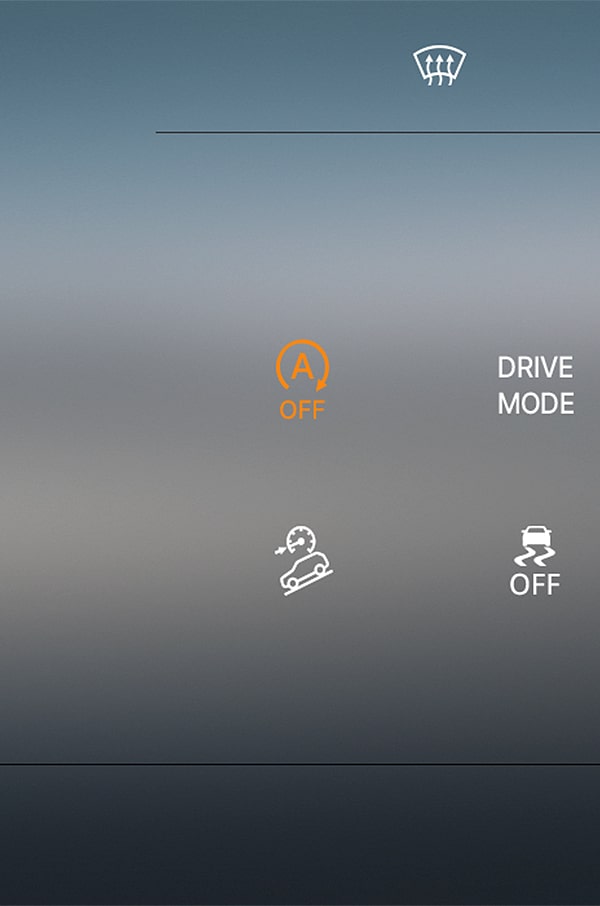

Automatically shutting the engine off when the vehicle is stationary, such as at a traffic signal, improving fuel efficiency by reducing unnecessary idling. (can be switched on/off)

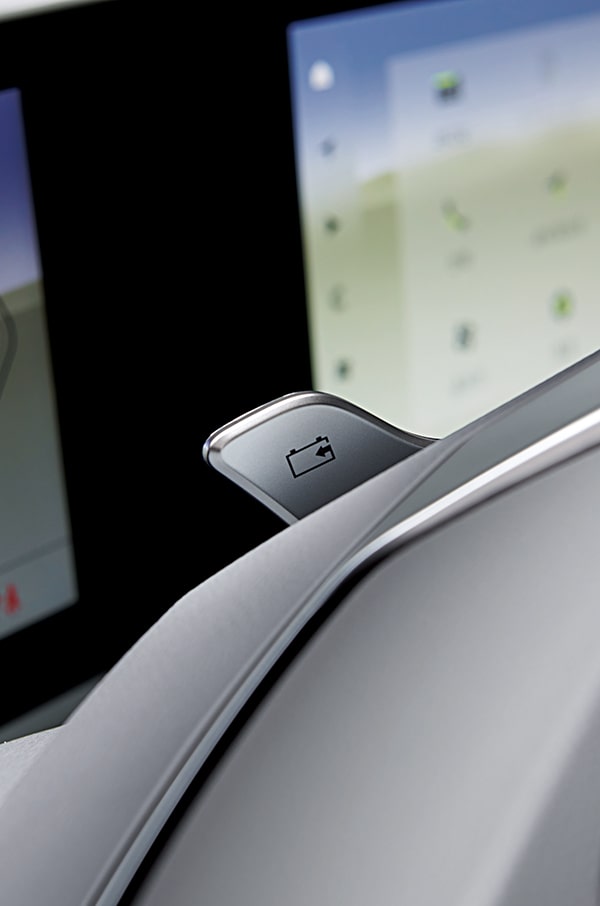

Offering manual mode shifting with up/down shift controls on the steering wheel, allowing for quick response to sudden driving situations.
SPECIFICATION
DIMENSIONS
| DRIVEN WHEELS | 2WD | 4WD | ||
| TRANSMISSION | 6MT | 6AT | 6AT | |

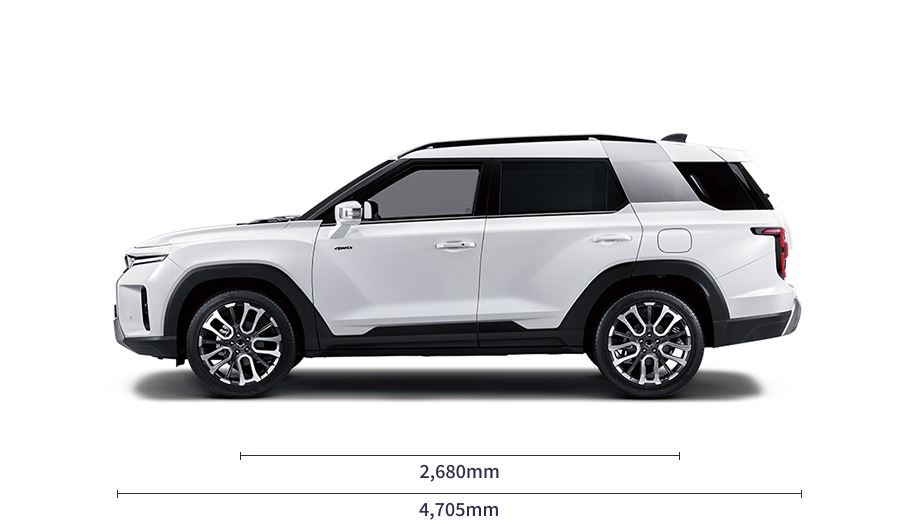

| Overall length (mm) | 4,705 | |||

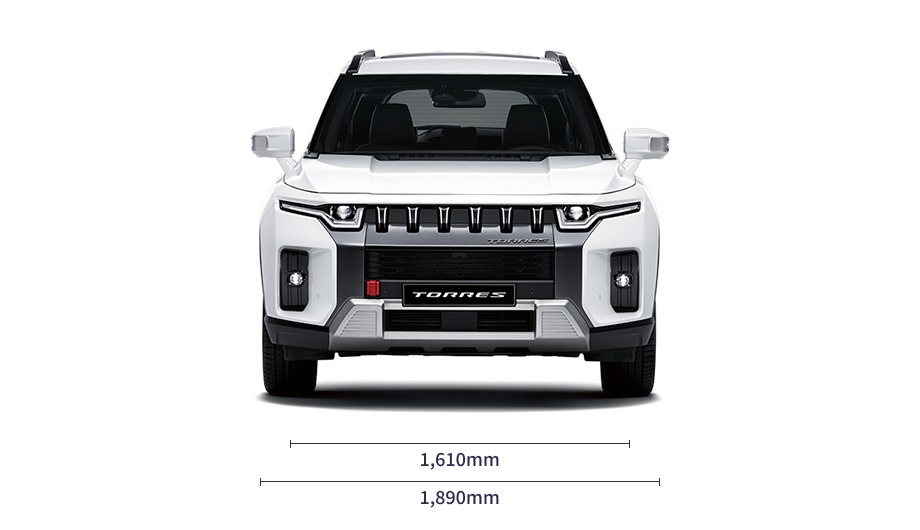

| Overall width (mm) | 1,890 | |||

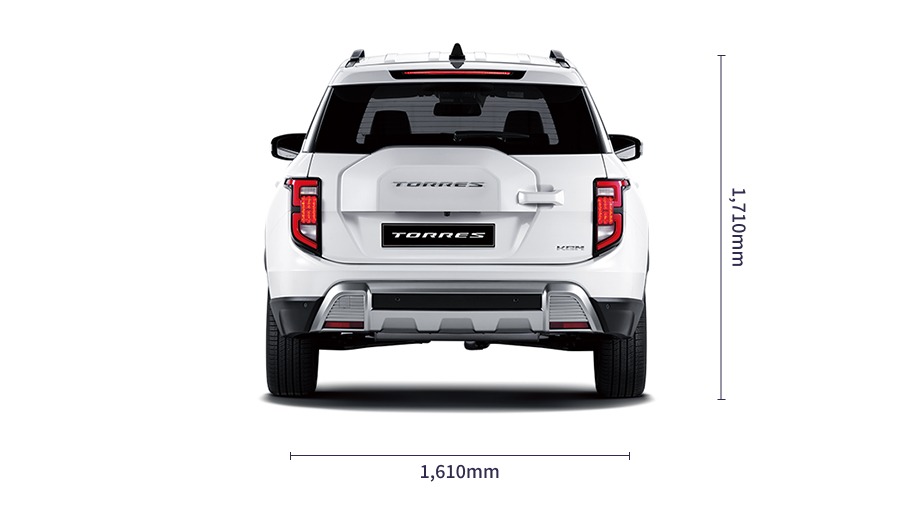

| Overall height (mm) | 1,710 (1,720 : with roof rack) | |||
| Wheelbase (mm) | 2,680 | |||
| Tread | Front (mm) | 1,610 | ||
| Rear (mm) | 1,630 | |||
| Overhang | Front (mm) | 935 | ||
| Rear (mm) | 1,090 | |||
| Minimum ground clearance (mm) | 195 | |||
| Minimum turning radius (m) | 5.42 | |||
| Gross vehicle weight (kg) | 2,050 | 2,080 | 2,170 | |
| Kerb weight (kg) | 1,498 | 1,528 | 1,618 | |
| Gross trailer weight | Braked (kg) | 1,500 | ||
| Unbraked (kg) | 750 | 500 | ||
POWERTRAIN
| DRIVEN WHEELS | 2WD | 4WD | ||
| Engine type | Petrol 1.5 GDI Turbo with ISG | |||
| Transmission | 6MT | 6AT | 6AT | |
| Emission | Euro 6e | |||
| Fuel | Petrol | |||
| Fuel tank (ℓ) | 50 | |||
| Capacity (cc) | 1,497 | |||
| Bore x Stroke (mm) | 76 x 82.5 | |||
| Compression ratio | 9.5 : 1 | |||
| Number of cylinders | 4 In-line | |||
| Max. power | kW/rpm | 120/5,000 ~ 5,500 | ||
| ps/rpm | 163/5,000 ~ 5,500 | |||
| Max. torque | Nm/rpm | 280/1,500 ~ 4,000 | ||
| kg.m/rpm | 28.6/1,500 ~ 4,000 | |||
| Max. speed (km/h) | 194 | 191 | ||
FUEL EFFICIENCY
| DRIVEN WHEELS | 2WD | 4WD | |
| TRANSMISSION | 6MT | 6AT | 6AT |
| CO2 (combined, g/km) | 179.7 | 193.6 | 205.0 |
| Combined (ℓ/100km) | 7.912 | 8.523 | 9.012 |
| Urban (ℓ/100km) | – | – | – |
| Extra Urban (ℓ/100km) | – | – | – |
| Phase 1(Low phase, ℓ/100km) | 9.531 | 10.762 | 11.683 |
| Phase 2(Mid phase, ℓ/100km) | 7.411 | 7.960 | 8.467 |
| Phase 3(High phase, ℓ/100km) | 6.831 | 7.204 | 7.613 |
| Phase 4(Extra High phase, ℓ/100km) | 8.533 | 9.153 | 9.537 |
TYRE INFORMATION
| Maker | NX | MICHELIN |
| Size | 225/60R17 | 235/55R18 |
| Product Information Sheet | PDF Download | PDF Download |
| Tyre Label | PDF Download | PDF Download |
